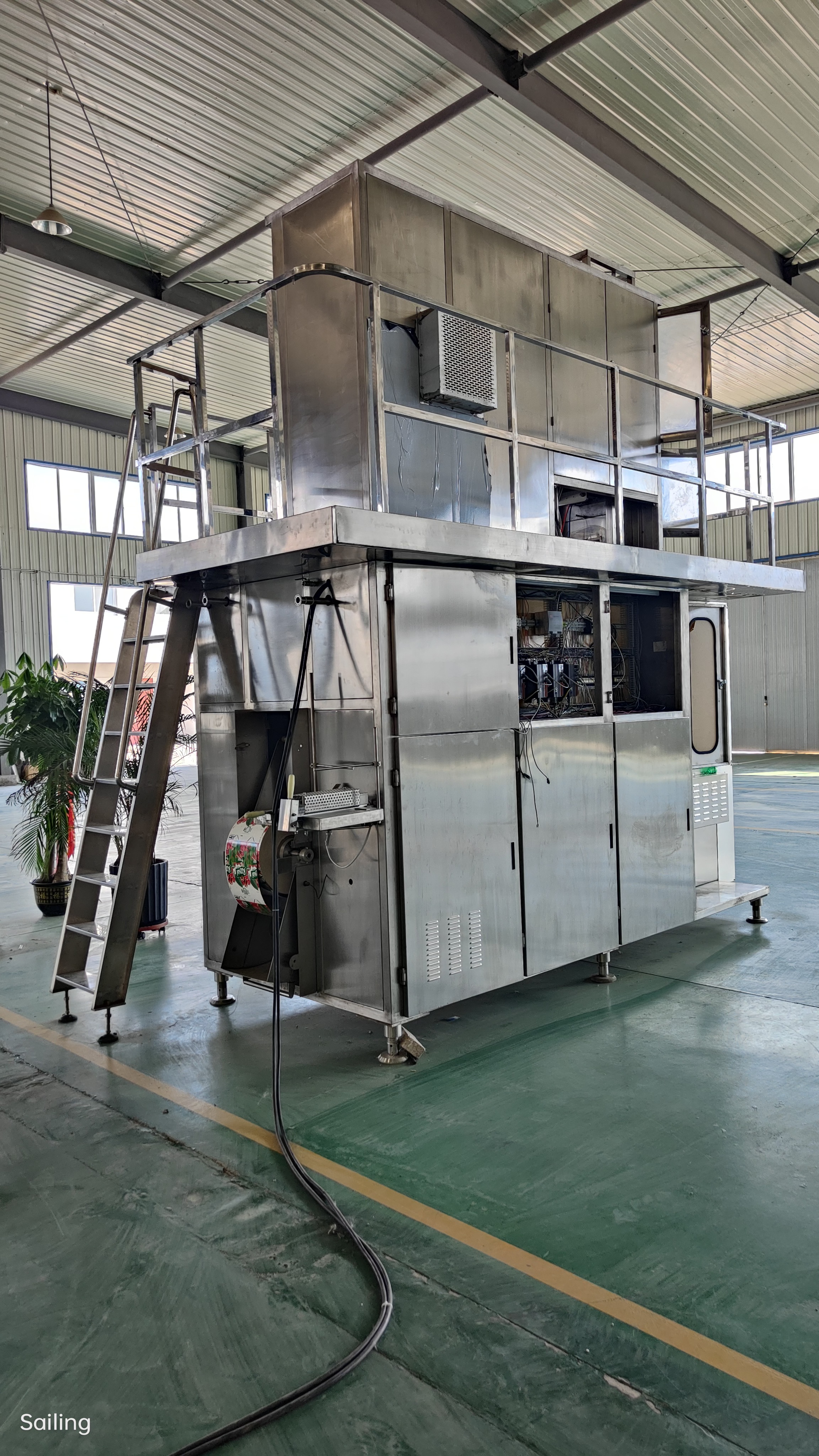

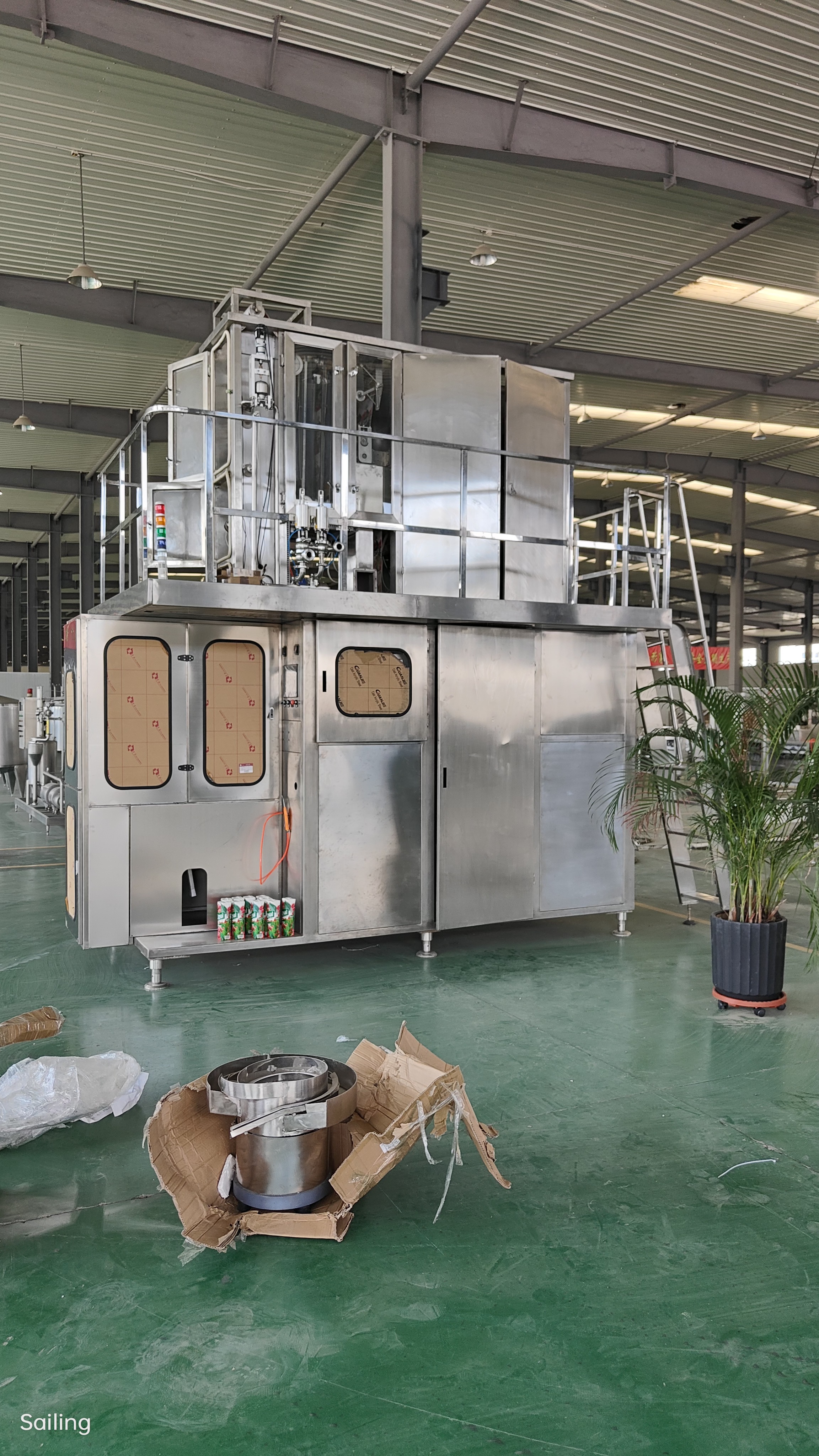

Main functions :

1)  The machine is suitable for filling milk, juice, soymilk etc other beverage.
2)  The machine Automatic Form Feed –sterilize –filling –shaping – sealing
3)  PLC human control, Human - Machine Interface with English and Chinese display. Intuitive operation and  Low Fault rate.
4)  Automatic finished all the job step, which includes run over the scroll reposefully, batch number, stick plastic tape, chemical and physical sterilizing,  roll into cylinder, filling material, sealing-off, molding, cutting and horn-shaped.
5)  The forming system we choose our own patent rectangular forming method instead of roundness system.  this system made the running much more stable, the function much more reliable, the exterior appearance of the product much perfect.

Main Technical Paramters :

Filling Capacity	3000box/hr
Filling Range	125ml
Packaging Shape	Slim Shaped,  Standard Shaped
Shelf Life	in 25-30ºc , juice shelf life 6-12months , milk 6 months
Packaging Material	PET/PAPER/PE/AL/PE/PE
Voltage	220V/380V 50Hz
Power	12kw
Air Consumption	Air pressure: ≥0.6 Mpa
Weight	1750kg
Size	3800*2100*3500mm
